RESISTEX® Geosynthetic Clay Liners



Meeting the Most Demanding Chemical Compatibility Requirements

RESISTEX Geosynthetic Clay Liners are a polymer-modified bentonite GCL that are engineered to provide the highest level of chemical compatibility for hydraulic barrier performance in extremely aggressive leachate environments.



Our RESISTEX family of GCLs offer compatibility with a wide range of pH, electrical conductivity, and ionic strengths that are common to mining liquids. CETCO recommends project-specific compatibility testing for the proper selection from the RESISTEX family of GCLs.



Unmatched chemical resistance

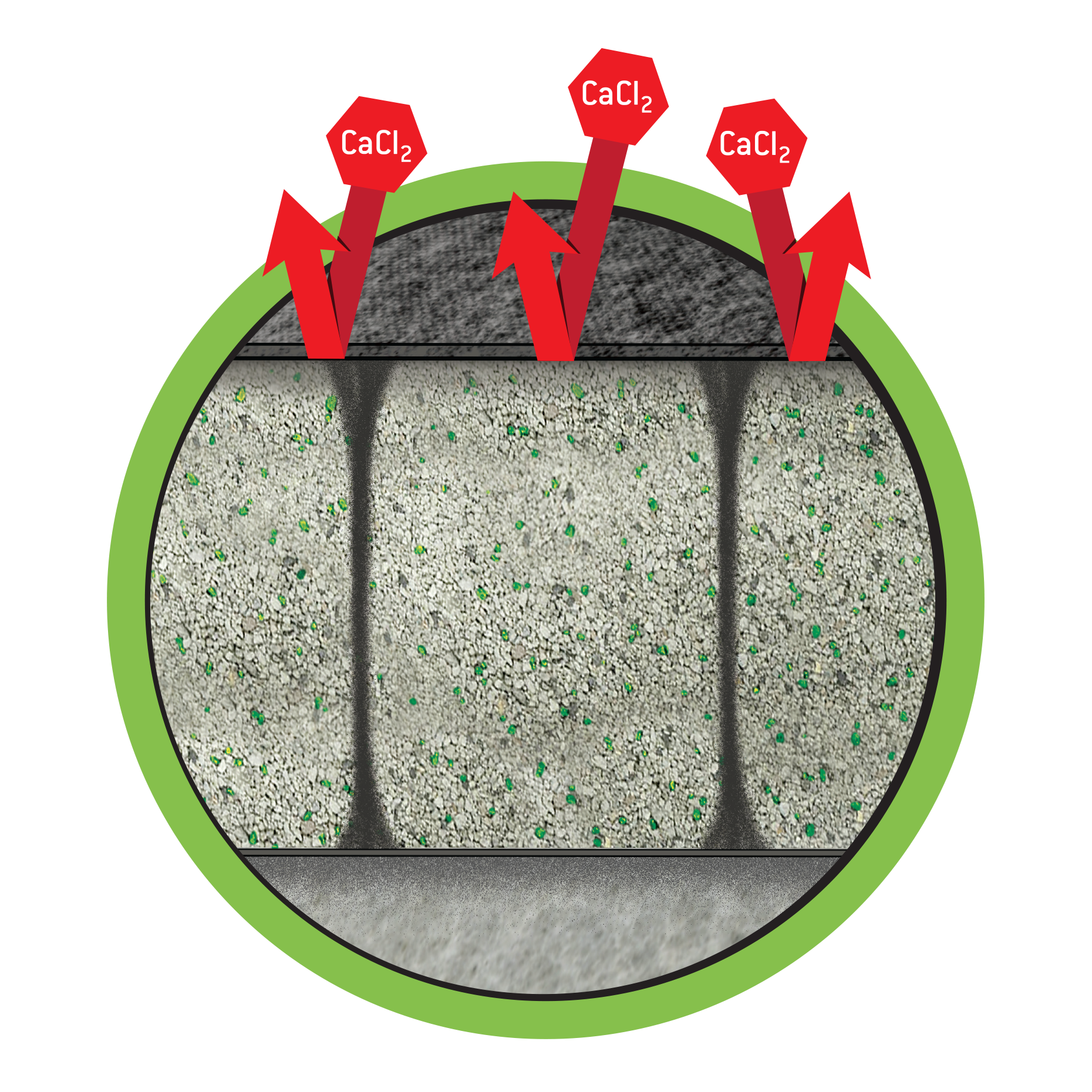

Dry-blended, polymer-treated GCLs are designed to provide improved chemical resistance in moderately aggressive leachate environments. The polymers help to reduce the effects of cation exchange by swelling and partly offsetting the reduced bentonite swell.



RESISTEX GCLs offer compatibility with a wide range of pH, electrical conductivity, and ionic strengths and are more effective than standard bentonite for contaminated chemical environments. RESISTEX GCLs may be custom engineered to meet project-specific requirements and are available with different polymer types and loadings.



Award winner

RESISTEX Geosynthetic Clay Liners were the recipient of the GeoME "Best Geosynthetics and Technology" award in 2015.



Common applications for RESISTEX GCLs

  • CCR storage
  • Red mud storage
  • Heap leach pads
  • Mine tailings dams
  • Caps
  • Solid waste storage bottom liner
  • Secondary containment
  • Pond liners

Configurations

100

  • Low Ionic Strength
  • High RMD (Ratio of Monovalent to Divalent Cations)

200

  • Medium Ionic Strength
  • Medium RMD (Ratio of Monovalent to Divalent Cations)

300

  • High Ionic Strength
  • Low RMD (Ratio of Monovalent to Divalent Cations)

FLW9

  • Highly contaminated liquids with steep slopes

cetco-customized-solutions-gcl



    Drop-In Spec

    We build all of our GCLs to be compliant with GRI-GCL3 and their guide specifications can be found for use on the Geosynthetic Institute website.

    In the News
    How CETCO Helped to Cap a Coal Ash Landfill in Mallorca, Spain - Waste Advantage Magazine, December 2019
    GeosyntheticsME Concludes 2015 Conference with Big Attendance, First Awards - Geosynthetics Magazine, November 2015
    Design Considerations for GCLs in Leach Pad Liner Systems - Geosynthetics Magazine, October 2014
    Dynamic Shear Strength of Geosynthetic Clay Liners - Geosynthetics Magazine, October 2013
    Evaluations of Engineered Cover Systems for Mine Waste Rock and Tailings - Geosynthetics Magazine, June 2013
    Static Shear Strength of Geosynthetic Clay Liners - Geosynthetics Magazine, February 2013
    New Geosynthetics Advocacy Aimed at State and Local Levels - Geosynthetics Magazine, February 2013
    Shear Strength of Geosynthetic Clay Liners - Geosynthetics Magazine, October 2012
    Technical Data Sheets
