ORGANOCLAY

Our Five-Star Treatment Media

Your first choice for removing organic contaminants from water or sediment, the ORGANOCLAY product range provides formulations to meet almost any adsorption application.



Used and trusted worldwide, it's proven to work efficiently and effectively.



Organoclay

A little goes a long way - and reduces costs

ORGANOCLAY's substantial adsorption capacity not only reduces necessary cap thickness compared to a conventional sand cap but can also extend cap life—in some circumstances, for years—and reduce overall costs.

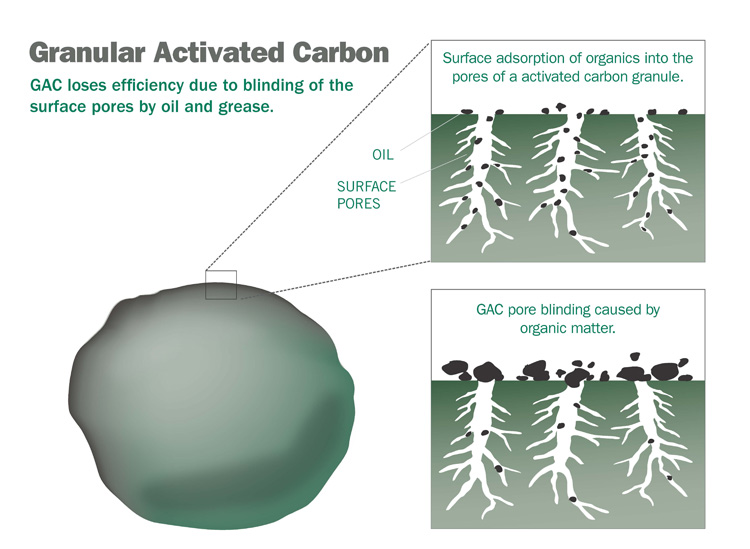

Because ORGANOCLAY can be used as a pre-treatment to Granular Activated Carbon (GAC), ORGANOCLAY can increase overall efficiency by preventing surface pores in GAC from blinding.

organoclay-vs-gac-adsorption

The ORGANOCLAY Product Range

Powerfully adsorbant ORGANOCLAY is available in multiple formulations to best mitigate water and sediment contamination in a variety of specific conditions:

cetco-organoclay-bb

ORGANOCLAY BB: Our coarsest grain media, ORGANOCLAY BB is a larger and denser version of ORGANOCLAY PM-200 to aid in settling through the water column. When used for sediment capping, ORGANOCLAY BB can be placed hydraulically or mechanically.



Applications:

  • Sediment Capping
Organoclay_Sample_Shot

ORGANOCLAY F: A proprietary granular filtration media that reliably adsorbs oils and similar organics from water. It is a brown and black mixture of 30% active ORGANOCLAY and 70% anthracite filter media, which allows for maximum utilization of the large sorption capacity of ORGANOCLAY without excessive pressure build-up in the column. When used as an in-series filtration media prior to an activated carbon vessel, ORGANOCLAY F extends the life and adsorbency of the activated carbon by removing larger molecular organics before they reach it. It also lowers the overall operating cost relative to using activated carbon alone. ORGANOCLAY can also be used in standalone mode to treat oil-contaminated water and stream condensates.



Applications:

  • Groundwater Pump-and-Treat
  • Sediment Dewatering Treatment

Organoclay

ORGANOCLAY MRM: In addition to adsorbing non-aqueous phase liquids (NAPL) and dissolved low-solubility organics, specially-formulated, sulfur-impregnated ORGANOCLAY MRM sequesters mercury (Hg0, Hg+1 and Hg+2) and arsenic (As+5) from water. Ideal for groundwater pump-and-treat or sediment dewatering treatment, ORGANOCLAY MRM can also be used in soil or sediment solidification/stabilization or as an additive to Portland Cement.



Applications:

  • Groundwater pump-and-treat
  • Sediment dewatering treatment
  • Solidification/stabilization



Organoclay_Sample_Shot

ORGANOCLAY PM-199: Our second finest grain media, ORGANOCLAY PM-199 features high adsorption capacity of oils, greases, and other NAPL. When used as an in-series filtration media prior to an activated carbon vessel, ORGANOCLAY PM-199 extends the life and adsorbency of the activated carbon by removing larger molecular organics that can cause fouling. ORGANOCLAY PM-199 also works as a standalone treatment media to treat oil-contaminated water and stream condensates.



Applications:

  • Organophilic Filtration Media
  • Bulk Sediment Capping
  • Solidification/Stabilization additive



Organoclay_Sample_Shot

ORGANOCLAY PM-200: Our second coarsest grain media, ORGANOCLAY PM-200's particle size aids in settling through the water column when placing a bulk active in-situ sediment cap. ORGANOCLAY PM-200 is also your best match for intermixing with coarse inert soil for use of a Permeable Reactive Barrier (PRB).



Applications:

  • Bulk Sediment Capping
  • Permeable Reactive Barrier (PRB)



Organoclay_Sample_Shot

ORGANOCLAY SS-199: Our finest-grain media, ORGANOCLAY SS-199 features medium adsorption of oils, greases, and other NAPL and helps stabilize organics for increased solidification of treated soils and sediment. ORGANOCLAY SS-199 is for use in soil or sediment solidification/stabilization or as an additive to Portland Cement.



Applications:

  • In Situ Solidification

How it does it

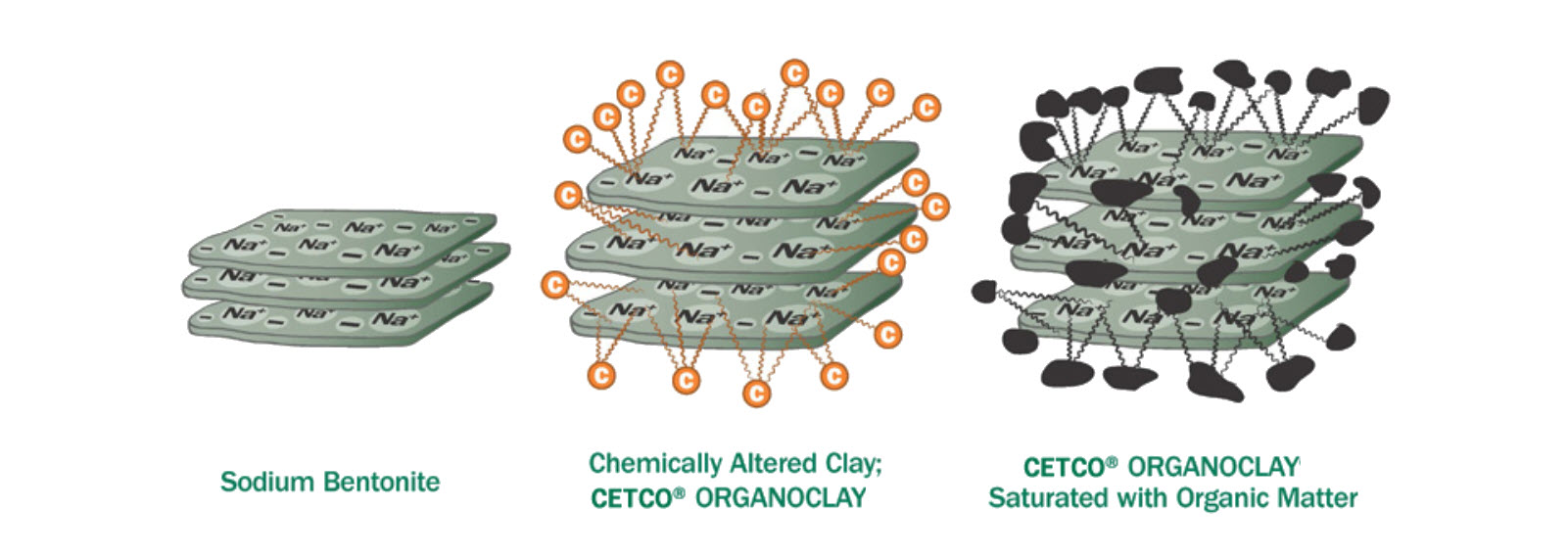

The ORGANOCLAY product line is a range of proprietary adsorption media that is highly effective in removing oils, greases and other high molecular weight, low solubility organic compounds from aqueous streams. ORGANOCLAY products are specialty sorbents, altered to an organophilic state making them attractive to organic molecules.


CETCO - Pioneer and leader in environmental remediation

CETCO is the leader and pioneer in cutting-edge environmental remediation solutions. Around the globe, our innovative teams of clay mineralogists, chemists, and polymer scientists transform ordinary minerals into extraordinary technology to solve day-to-day problems worldwide.



cetco-customized-solutions-remediation





    Related Products
    reactive-core-mat-harbor-point-2

    REACTIVE CORE MAT®

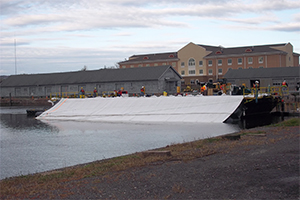

    A CETCO REACTIVE CORE MAT facilitates the placement of ORGANOCLAY underwater to treat contaminated sediment by encapsulating the active material such as ORGANOCLAY within a geotextile. Deployed as an active in situ treatment later directly over contaminated sediments, a REACTIVE CORE MAT mitigates dissolved contaminant transport into surface water and reduced required cap thickness when compared to traditional in situ capping methods.

    Learn More
